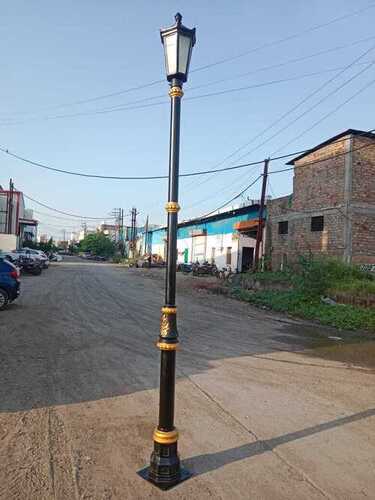

3 Meter Decorative Post Top Lamp Pole

Name: 3 Meter Decorative Post Top Lamp Pole
Brand: R-PROXIMA LIGHTING SOLUTION
Price: 14000.0 INR
Availability: InStock

Price 14000.0 INR/ Number

Get a Price/Quote

3 Meter Decorative Post Top Lamp Pole Specification

Size
Pole: 3m height x ~76-89mm diameter

Head Diameter
230mm to 320mm (dependent on fixture head)

Diameter
76-89mm (Pole OD)

Beam
Depends on fitted Lamp Head; typically symmetrical wide

Dimension (L*W*H)
Standard: H 3m x D 76-89mm

Power
Up to 60W (depending on head fitting)

Product Type
Decorative POST TOP Lamp Pole

Material
High-grade galvanized steel or aluminum

Light Source
LED (Lamp Head dependent)

Height
3 Meter

Voltage
220-240V AC

Power Supply
AC Mains, 220V-240V, 50/60Hz

Usage
Outdoor Lawn, Garden, Pathway, Campus, Public Spaces

Protection Level
Weather resistant, UV protected coating

Efficiency
High luminous efficiency with compatible LED heads

Color Temperature
3000K/4000K/6000K (Depends on Lamp Head)

IP Rating
IP65 (for fixture and pole)

Color
Black, Grey, or Custom Powder Coating

Maintenance Access
Provision for easy access door for wiring

Anchor Bolt Material
Galvanized steel

Fixture Compatibility
Compatible with various post top luminaires (accommodates 60mm entry spigot)

Installation Environment
Outdoor use, corrosion resistant

Ambient Temperature Range
-25C to +55C

CRI (Color Rendering Index)
>80 (head dependent)

Finish
Powder Coated or Hot Dip Galvanized

Wind Resistance
Designed for wind Zone III (up to 160 km/h)

Mounting Type
Surface Mounted with Anchor Bolts & Base Plate

Base Plate Dimensions
220mm-250mm diameter, 10mm thickness

Compliant Standards
IS/IEC standards for outdoor lighting poles

Pole Shape
Round, straight shaft

3 Meter Decorative Post Top Lamp Pole About

Product Description

Decorative Lighting Poles are playing major role in Outdoor and Indoor Lighting poles. We are engaged in manufacturing and supplying supreme quality of Decorative Lighting Poles. In this pole we are using cast iron and cast aluminum material for the given heritage look.

These poles are specially for Park, Garden, Lawn and Apartments streets etc. Pole is coated in various colors as per client oriented to give it protection against rust and corrosion. We supply pole with different heights that range from 2 meters to 9 meters.

Key Points:-

Creative designs to tempting visual

Can withstand hurricane force winds

Oxidization resistance

Electroplating to beautify the pole

Using ms pipe or GI pipe

Using cast iron material (optional )

Using cast aluminum material (optional )

Applications

Garden lighting

Pathway lighting

Apartment open aria

Lawn lighting

Park lighting

Road lighting

Pole high

Pole height 3 meter with double arm

Pole height 3 meter with single arm

Pole height 4 meter with double arm

Pole height 4 meter with single arm

Pole height 5 meter with double arm

Pole height 5 meter with single arm

Pole height 6 meter with double arm

Pole height 6meter with single arm

Pole height 7 meter with double arm

Pole height 7 meter with single arm

Rugged Construction & Finish

Designed for outdoor endurance, the pole is constructed from high-grade galvanized steel or aluminum, providing long-lasting strength. The exterior is powder coated or hot dip galvanized to defend against harsh weather, UV exposure, and corrosion, ensuring performance and elegance in any outdoor setting.

Easy Mounting and Maintenance

Installation is straightforward with surface-mount anchor bolts and a 10mm thick base plate. An integrated access door allows safe and convenient wiring maintenance, minimizing downtime. The pole's round, straight-shaft design enhances both aesthetic appeal and installation simplicity.

Versatile Outdoor Applications

Engineered for wind Zone III conditions (up to 160 km/h), this lamp pole is perfect for various outdoor locations, such as gardens, lawns, pathways, campuses, and public environments. It is compatible with multiple LED post top heads, offering flexibility in color temperature and beam profiles to suit distinct ambiance requirements.

FAQ's of 3 meter decorative POST TOP Lamp pole:

Q: How do I install the 3-meter POST TOP decorative lamp pole?

A: Installation is done by surface mounting the pole using the provided galvanized anchor bolts and a robust base plate. The process involves fixing the base plate (220-250mm diameter, 10mm thick) to a solid foundation, then securing the pole. An easy access door simplifies wiring connections.

Q: What environments is this lamp pole suitable for?

A: This lamp pole is designed for outdoor environments, including gardens, pathways, lawns, campuses, and public spaces. With its weather-resistant coating, high wind resistance (up to 160 km/h in Zone III), and IP65 rating, it performs excellently in diverse climates and conditions.

Q: When should maintenance be performed, and how accessible is internal wiring?

A: Routine maintenance checks are advisable every 6-12 months, or as needed based on the environment. Wiring is easily reachable through the integrated access door, facilitating safe inspections and repairs without dismantling the pole.

Q: What types of luminaires can be used with this pole?

A: The pole accommodates various post top LED luminaires compatible with a 60mm entry spigot. It supports head diameters from 230mm to 320mm, with power outputs up to 60W, ensuring flexibility in fixture choice and lighting design.

Q: Where can I use this lamp pole for best results?

A: Ideal for outdoor spaces demanding durability and aesthetic appeal, such as public parks, campuses, pathways, gardens, and parking areas. Its corrosion resistance and customizable finish ensure it complements numerous architectural styles.

Q: What benefits does the powder-coated or hot dip galvanized finish provide?

A: These finishes significantly enhance the pole's protection against rust, corrosion, and UV damage, prolonging lifespan and preserving its appearance even after prolonged outdoor exposure.

Q: Is the pole compliant with safety and performance standards?

A: Yes, the lamp pole is manufactured in compliance with IS/IEC standards for outdoor lighting poles, ensuring safe performance, structural reliability, and longevity in demanding outdoor environments.
